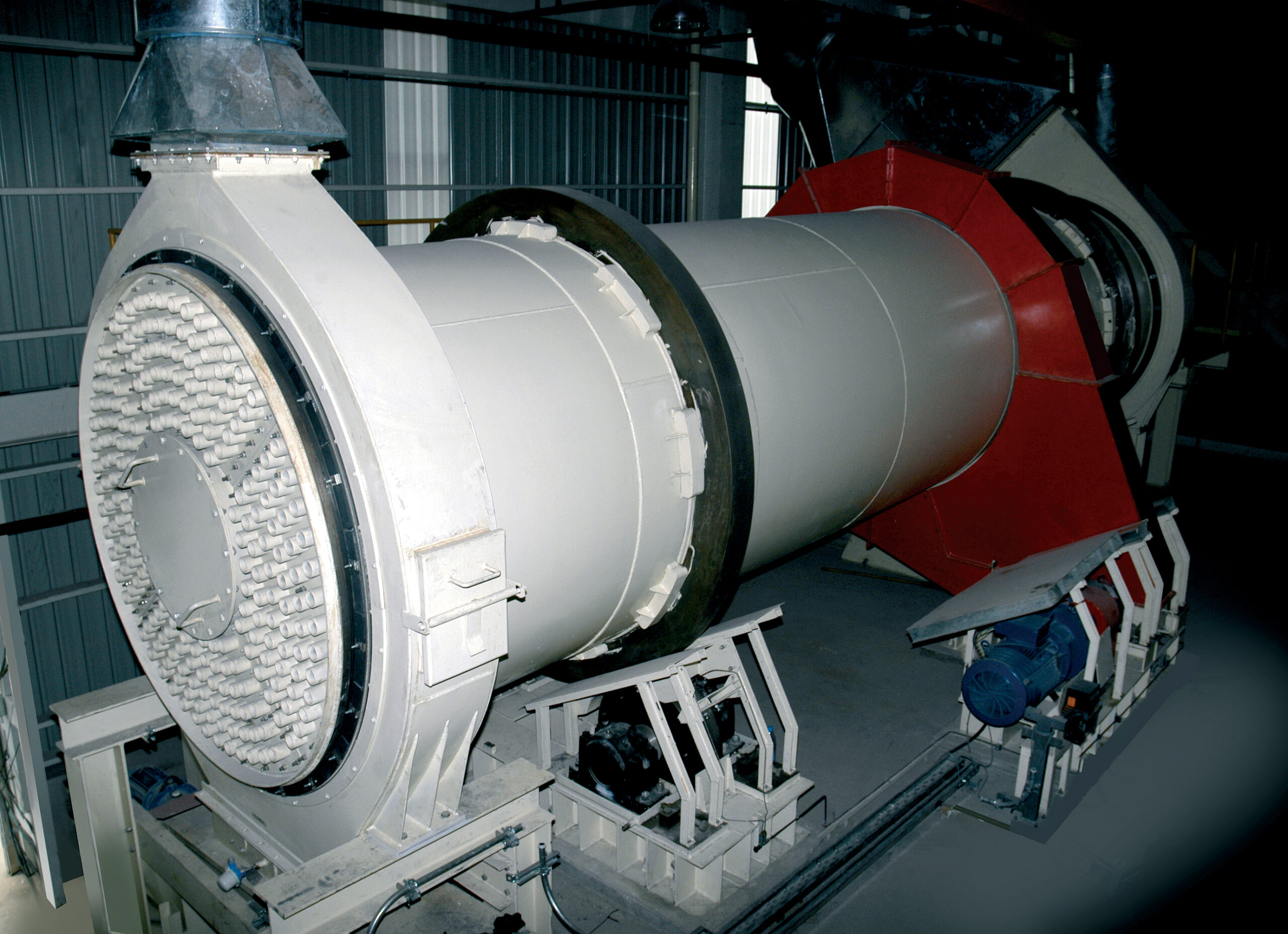

Rotary drum cooler for calcined gypsum products

After the calcining process gypsum products must be cooled from temperatures of 150 C in preparation for further processing. This is a line of quick and efficient cooling systems based on proven heat-exchanger technology.

Efficient high temperature calcining for plaster production

Claudius Peters’ Rotary Drum Coolers can process up to 100 tonnes per hour of calcined gypsum products. The hot material is cooled via the counter-current indirect principal in whom cooling air is moved along through a bundle of tubes in the direction opposite the material flow. As material moves through rotating drum its heat energy is indirectly transferred to the air through the tube walls and exhausted through from the system. This exhaust air flow can readily be captured and use as pre-heated combustion air for other plant processes greatly increasing efficiency. The rotating action of the drum also serves to mix and further homogenize the output product. Retention time of the material in the cooling unit is carefully controlled to avoid formation of unwanted by-products like soluble anhydrite and dihydrite.

BENEFITS FOR YOU

  • A continuous cooling process for up to 100 tonnes per hour of calcined gypsum products
  • Designed for reclamation of cooling air for use as pre-heated combustion air
  • Rotating action homogenizes output
  • Customizable to fit the needs of any plant

Claudius Peters (http://www.claudiuspeters.com/) stockyards, pneumatic conveyors, silos, clinker coolers, grinding mills, and packing systems can be found in cement, coal, alumina, and gypsum plants across the globe.
