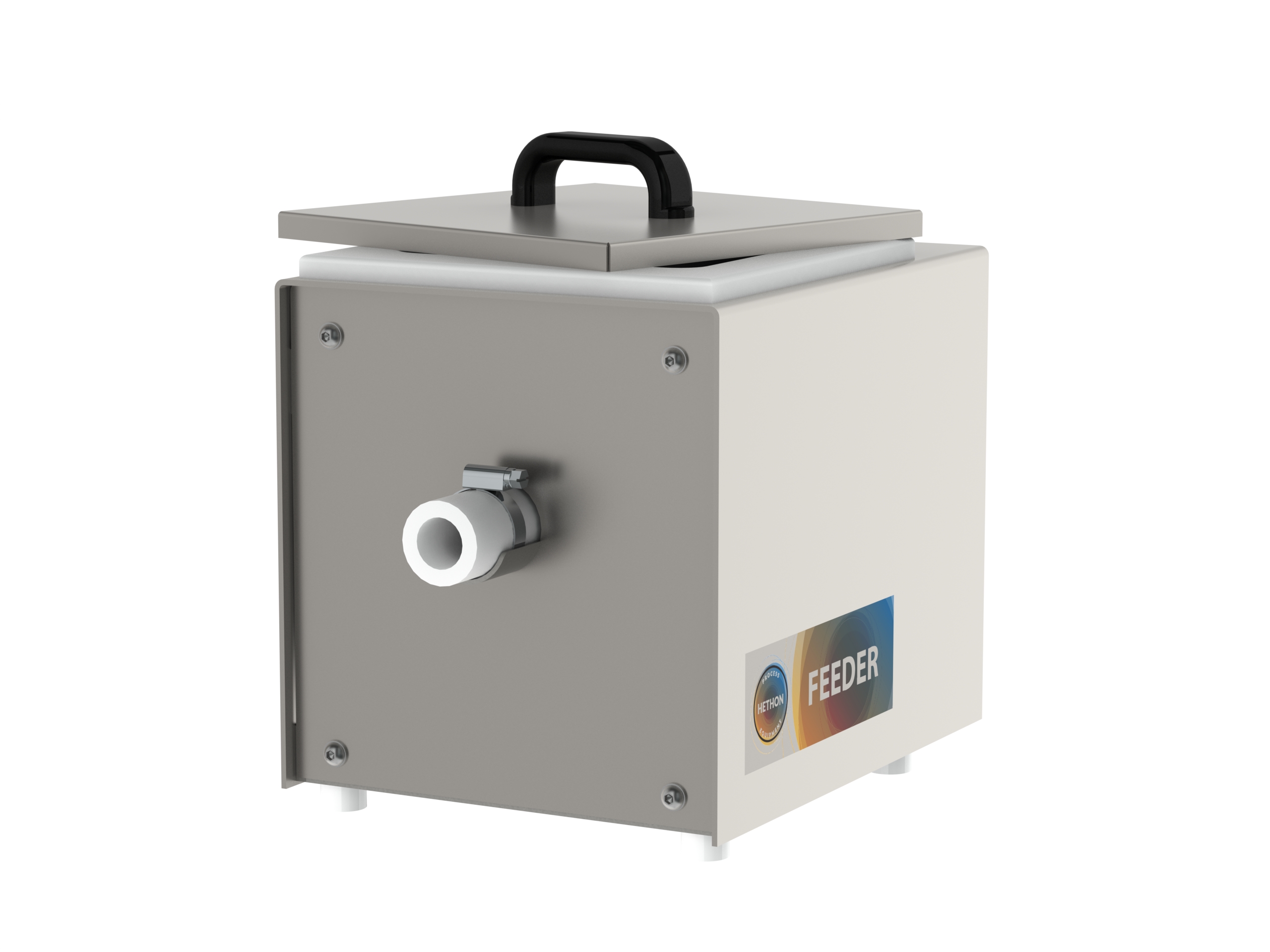

Small feeder with flexible wall hopper

In many laboratory applications and production processes, smaller quantities of powder product need to be dosed into lab equipment or tiny containers. Similarly, in pilot plants where production processes are simulated, lesser volumes of dry material need to be metered and dispensed.

Accurately dose small quantities of powders

The compact Hethon feeder 30 is capable of delivering at rates ranging from 15 ml per hour to 35 litres per hour, depending on the screw utilised and the material to be dosed.

The flexible hopper can hold up 1 litre of product, but the working volume may be increased to 1.2 litres by adding the optional extension hopper.

Paddles situated against the outside of both converging hopper walls are mechanically rocked back and forth to prevent bridges or rat-holes, assuring efficient filling of the feed screw for optimum volumetric performance, even with very small doses.

BENEFITS FOR YOU

  • suitable for lab applications and process simulation
  • no internal agitation which can cause material degradation
  • fast and easy to clean
  • low power consumption and long service life
  • Atex zone 21 Certificated

Hethon is a leading manufacturer of dry material handling equipment for dosing dry substances with different properties very accurately.
