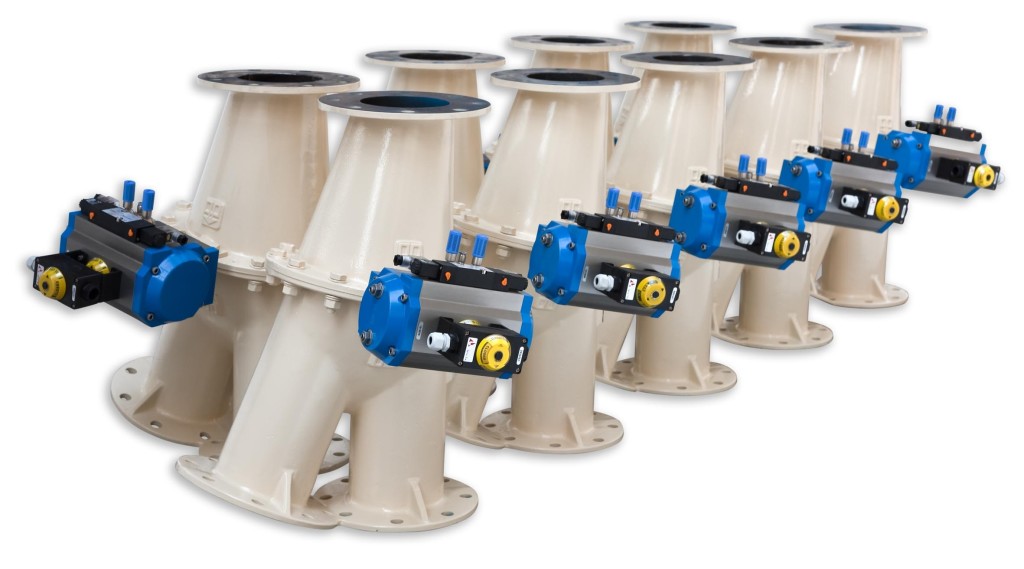

Two-way flap type diverter valve

Routing powder, pellets or granules from a product source to two receiving points must be done without causing turbulence or any loss in pressure.

Divert non abrasive, free-flowing products two ways without pressure drop

RD type diverters from TBMA are designed to suit simple two-way diversion in pneumatic conveying systems operating at pressures up to 1 bar.
Designed and constructed so that the internal synthetic flap always seals against the bore of the housing, this valve comes in eight sizes ranging from 50 to 300 mm.
Available in cast iron, stainless steel, aluminium or chemically nickel plated, the RD diverter valve can cater for the majority of applications.

BENEFITS FOR YOU

  • divert with minimal transition effect
  • no lodgement points
  • simple access and maintenance
  • use in wide range of applications

TBMA (http://www.tbma.com/) is renowned for its high quality rotary valves and hygienic bulk loading, packing and unpacking capabilities.
